Description
| Specification | Details |
|---|---|

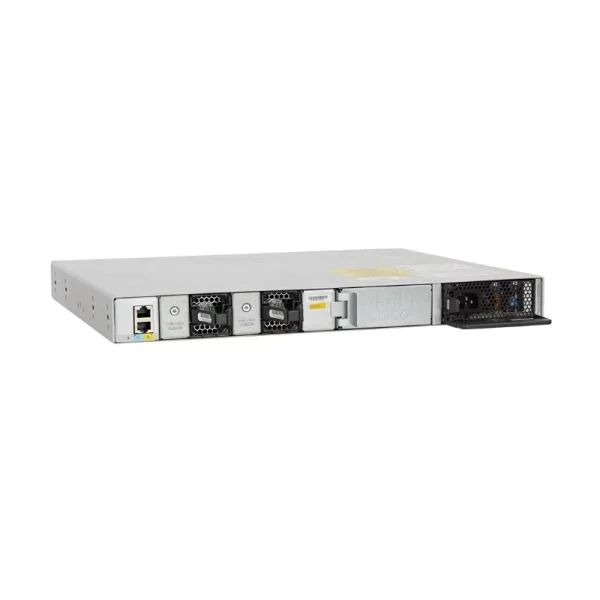

| Model | C9200L-24T-4X-E |
| Brand | Cisco |
| Downlinks (10/100/1000 or PoE+ copper ports) | 24 ports data |
| Uplink Configuration | 4 × 10G fixed uplinks |
| Default Primary AC Power Supply | PWR-C5-125WAC |
| Fans | Fixed redundant |
| Software | Network Essentials |
| Chassis Dimensions (H × W × D) | 1.73 × 17.5 × 11.3 in (4.4 × 44.5 × 28.8 cm) |
| Virtual Networks | 1 |
| Stacking Bandwidth | 80 Gbps |
| Total MAC Addresses | 16,000 |
| Total IPv4 Routes (ARP + Learned) | 11,000 (8,000 direct, 3,000 indirect) |
| IPv4 Routing Entries | 3,000 |
| IPv6 Routing Entries | 1,500 |
| Multicast Routing Scale | 1,000 |
| QoS Scale Entries | 1,000 |
| ACL Scale Entries | 1,500 |
| Packet Buffer (per SKU) | 6 MB buffers for 24- or 48-port Gigabit Ethernet models |
| Flexible NetFlow (FNF) Entries | 16,000 flows on 24- and 48-port Gigabit Ethernet models |
| DRAM | 2 GB |
| Flash | 4 GB |
| VLAN IDs | 1024 |
| Total SVIs | 512 |
| Jumbo Frames | 9198 bytes |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 190.4 Mpps |
| Mean Time Between Failures (MTBF) | 525,990 hours |
| Weight | 3.5 kg |
