Description

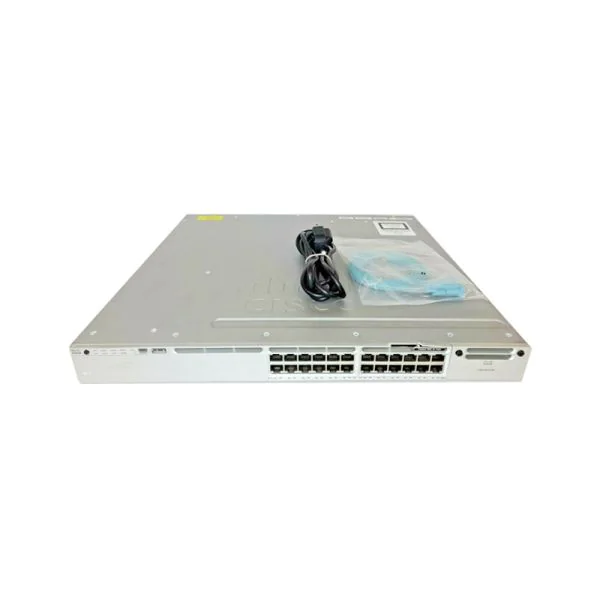

| Cisco WS-C3850-24P-L Specification | |
|---|---|
| Model | WS-C3850-24P-L |
| Enclosure Type | Rack-mountable – 1U |
| Ports | 24 × 10/100/1000 (PoE+) |
| Network Management Interface |
• Ethernet management port (RJ-45, Cat-5) • Management console port (RJ-45-to-DB9) |
| Available PoE Power | 435W |
| Switching Capacity | 92 Gbps |
| Maximum Stacking Number | Up to 9 switches |
| Stack Bandwidth | 480 Gbps |
| Forwarding Performance | 68.4 Mpps |
| FNF Entries | 24,000 flows |
| Maximum VLAN IDs | 1,000 |
| MAC Address Table Size | 32K |
| CPU | Multicore CPU |
| RAM | 4 GB |
| Flash Memory | 2 GB |
| Wireless Capabilities | |
| APs per Switch/Stack | 100 |
| Wireless Clients per Stack | 2000 |
| Total WLANs | 64 |
| Wireless Bandwidth | Up to 20 Gbps |
| Supported Aironet AP Series | 3600, 3500, 2600, 1600, 1260, 1140, 1040 |
| Expansion & Connectivity | |
| Console Ports | USB Type-B, RJ-45 |
| Expansion Slots | 1 network module slot, 1 redundant power slot |
| Network Modules |
• C3850-NM-4-1G (4×1G) • C3850-NM-2-10G (2×10G or 4×1G) |
| StackWise Stacking Cables | 0.5 m, 1.0 m, 3.0 m |
| Stack Power Cables | 30 cm, 150 cm |
| Power | |
| Power Supply | PWR-C1-715WAC |
| Redundancy | Optional |
| Voltage Range | 100–240V |
| Power Consumption | 88.32W (max) |
| Physical | |
| Width | 17.5 in (44.5 cm) |
| Depth | 17.7 in (44.5 cm) |
| Height | 1.75 in (4.45 cm) |
| Weight | 16.3 lb (7.4 kg) |
| Rack Mount Kit | Optional |
| MTBF | 269,450 hours |
| System Software / Licenses | |
| System Software | IOS LAN Base (Upgradable) |
| EnergyWise | ENERGY-MGMT, ENERGY-MGT-100-K9 |
| Licenses |
• LAN Base → IP Base (paper/e-license) • LAN Base → IP Services (paper/e-license) • Wireless AP Licenses available |
| Environmental | |
| Operating Temperature | -5°C to +45°C (varies with altitude) |
| Storage Temperature | -40°C to +70°C |
| Operating Altitude | Up to 4000 m |
| Storage Altitude | Up to 4573 m |
| Humidity | 10%–95% noncondensing |
