| Specification | Details |
|---|---|

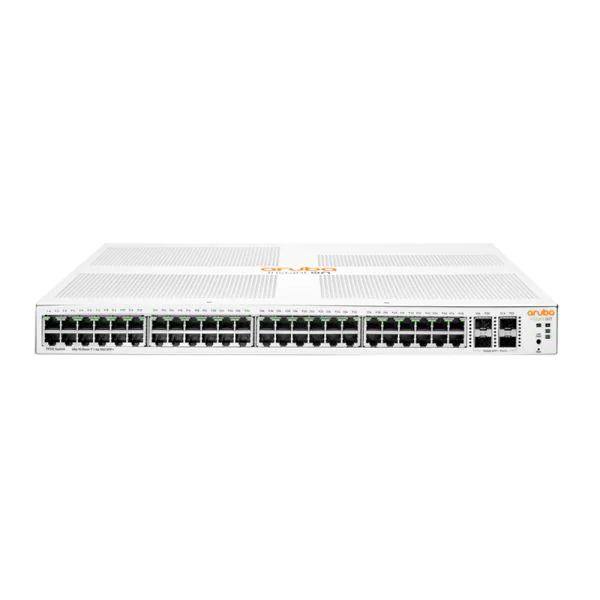

| Model | JL686A |
| Product Series | Aruba Instant On 1930 Switch |
| I/O Ports and Slots | 48 × RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3, 802.3u, 802.3ab) Duplex: 10/100 half or full, 1000 full only 4 × SFP+ 1/10GbE ports |
| Switching Capacity | 176 Gbps |
| Throughput | 130.95 Mpps |
| Processor & Memory | ARM Cortex-A9 @ 800 MHz 512 MB SDRAM, 256 MB Flash Packet Buffer: 1.5 MB |
| Dimensions | 17.42 × 12.7 × 1.73 in (44.25 × 32.26 × 4.39 cm), 1U height |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Operating Relative Humidity | 15% to 95% @ 104°F (40°C) |
| Storage Temperature | -40°F to 158°F (-40°C to 70°C) |
| Storage Relative Humidity | 15% to 95% @ 140°F (60°C) |
| Maximum Altitude | Up to 10,000 ft (3 km) |
| Idle Power Consumption | 34.5 W |
| Power over Ethernet (PoE) | 370 W Class 4 PoE |
| Power Supply | Internal Power Supply |
