| Category | Specification |
|---|---|

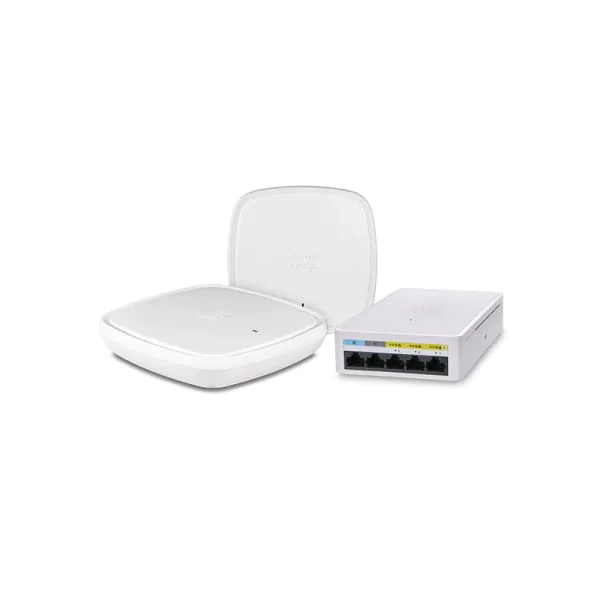

| Model | Cisco Catalyst 9105AXW-K Wall Plate Access Point |
| Software Support | Cisco Unified Wireless Network Software Release 8.10MR3 or later nCisco IOS XE Software Release 17.3.1 or later |
| Supported Wireless LAN Controllers | Cisco Catalyst 9800 Series Wireless Controllers nCisco 3504, 5520, 8540 Wireless Controllers nCisco Virtual Wireless Controller |
| 802.11n (Wi-Fi 4) | 2×2 MIMO with two spatial streams nMaximal Ratio Combining (MRC) n802.11a/b/g/n support n20 & 40 MHz channels nPHY data rates up to 444.4 Mbps nA-MPDU and A-MSDU packet aggregation nDFS support nCyclic Shift Diversity (CSD) |
| 802.11ac (Wi-Fi 5) | 2×2 downlink MU-MIMO nMRC and beamforming n20, 40, 80 MHz channels nPHY data rates up to 866.7 Mbps nA-MPDU and A-MSDU packet aggregation nDFS support nCSD support nWPA3 support |
| 802.11ax (Wi-Fi 6) | 2×2 uplink/downlink MU-MIMO nUplink/downlink OFDMA nTarget Wake Time (TWT) nBSS Coloring nMRC and beamforming n20, 40, 80 MHz channels nPHY data rates up to 1.488 Gbps nA-MPDU and A-MSDU packet aggregation nDFS support nCSD support nWPA3 support |
| Integrated Antenna | 2.4 GHz: Internal antenna, peak gain 3 dBi n5 GHz: Internal antenna, peak gain 5 dBi |
| Interfaces | 1 × 100/1000/2500 Base-T Ethernet uplink n3 × 10/100/1000 Base-T Ethernet downlink (LAN1, LAN2, LAN3) nLAN1 supports 10.5W PSE power budget nRJ-45 management console port nUSB 2.0 (4.5W) nPassthru port |
| Indicators | Status LED indicating boot loader status, association status, operating status, warnings, and errors |
| Dimensions (W × L × H) | 3.54 × 6.3 × 1.3 in. n(90 × 160 × 32.66 mm) |
