| Specification | Details |
|---|---|

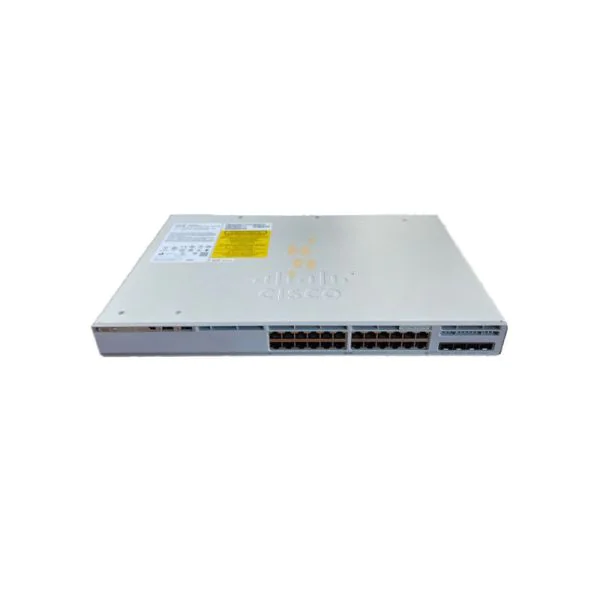

| Model | C9200L-24P-4G-A |
| Brand | Cisco |
| Series | Catalyst 9200L Series |
| Product Type | Fixed Configuration Switch |
| License Level | Advanced (A) |
| Chassis Dimensions (H×W×D) | n Base Unit: 1.73 × 17.5 × 11.3 in (4.4 × 44.5 × 28.8 cm) n With FEP/Fan: 1.73 × 17.5 × 12.9 in (4.4 × 44.5 × 32.9 cm) n |
| Fixed Ports | 24 × 10/100/1000BASE-T (RJ45) with PoE+; 4 × 1G SFP uplinks |
| PoE Budget | 370W total PoE power, supports 802.3af/at PoE+ |
| Power Supply | 600W AC (PWR-C5-600WAC or PWR-C6-600WAC) |
| Input Voltage | 100–240V AC, 50/60Hz |
| Switching Capacity | 96 Gbps |
| Forwarding Rate | 72 Mpps |
| Buffer Memory | 16 MB shared |
| MAC Address Table | 32,000 entries |
| VLAN Support | 4,096 active VLANs, 1,500 STP instances |
| MTBF | 392,210 hours (~44.8 years) |
| Software Licensing | Advanced (pre-installed) |
| Minimum IOS-XE | 16.12.1 |
| Layer 3 Routing | OSPF, EIGRP, BGP, IS-IS, PIM, VRF-lite |
| Security Features | 802.1X, MACsec, TrustSec, Flexible NetFlow, sFlow |
| Operating Temperature | Standard: 32°F to 104°F (0°C to 40°C); Short-term: -5°C to 50°C (up to 96 hours/year) |
| Humidity | 5% to 90% non-condensing |
| Altitude | Up to 10,000 ft (3,000 m) |
| Acoustics | Noise Level (25°C): LpA 42 dB typical, 45 dB max; LwA 5.3 B typical, 5.6 B max |
| Management Interfaces | 1 × RJ45 console (10/100), 1 × RJ45 management (10/100) |
| Supported Protocols | SNMPv3, NETCONF/YANG, RESTCONF, gRPC |
| Compliance – Safety | UL 60950-1, EN 62368-1 |
| Compliance – EMC | FCC Part 15 Class A, EN 55032 |
| Compliance – RoHS | Compliant |
| Power Consumption (with PoE) | n 115V AC: Idle 38.95W, 50% 44.08W, 100% 49.00W n 230V AC: Idle 38.57W, 50% 43.69W, 100% 48.62W n |
