| Model |

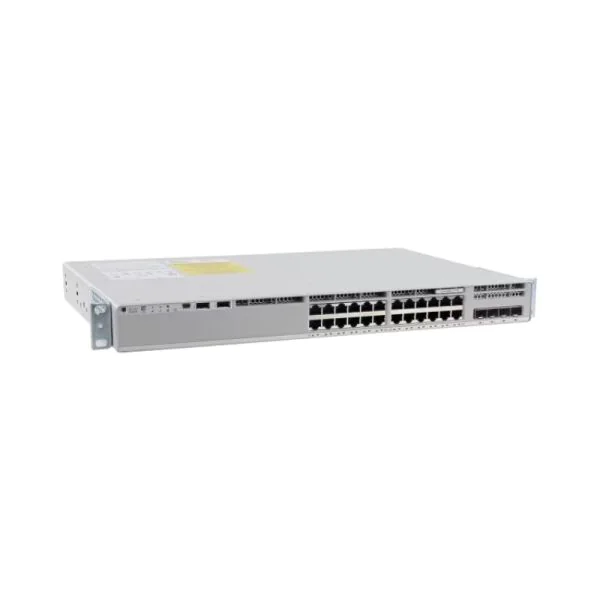

C9200L-24P-4X-E |
| Brand |
Cisco |
| Form Factor |
Rack-mountable, 1U |
| Dimensions (Chassis, H × W × D) |
1.73 × 17.5 × 11.3 in (4.4 × 44.5 × 28.8 cm) |
| Dimensions (Chassis + FEP + Fan, H × W × D) |
1.73 × 17.5 × 12.9 in (4.4 × 44.5 × 32.9 cm) |
| Mean Time Between Failures (MTBF) |
390,310 hours |
| Operating Temperature |
-5°C to +45°C (up to 10,000 ft / 3000 m) |
| Storage Temperature |
-40°C to +70°C |
| Relative Humidity (Operating) |
5% to 90% (non-condensing) |
| Power Supply |
600W AC (PWR-C5-600WAC) |
| Acoustic Noise (LpA Typical/Max) |
42 dB / 45 dB |
| Acoustic Noise (LwA Typical/Max) |
5.3 B / 5.6 B |
| Fixed Ports |
24 × 10/100/1000BASE-T PoE+ |
| Uplink Ports |
4 × 1G SFP |
| Management Ports |
1 × RJ-45 Console, 1 × RJ-45 Management |
| Power Consumption (No Link / Full Traffic / Max PoE) |
42.83 W / 51.08 W / 445.35 W |
| Safety Standards |
UL 60950-1, IEC 62368-1, EN 60950-1 |
| EMC Standards |
FCC Part 15, CISPR 32, EN 55032 |
| Environmental Compliance |
RoHS 5 Compliant |
| Supported Protocols |
SNMPv3, SSHv2, RADIUS/TACACS+ |
| Core Standards |
IEEE 802.1x, 802.1Q VLAN, 802.3af/at PoE |
| Weight |
4.71 kg |
