| Brand |
Cisco |
| Product Name |

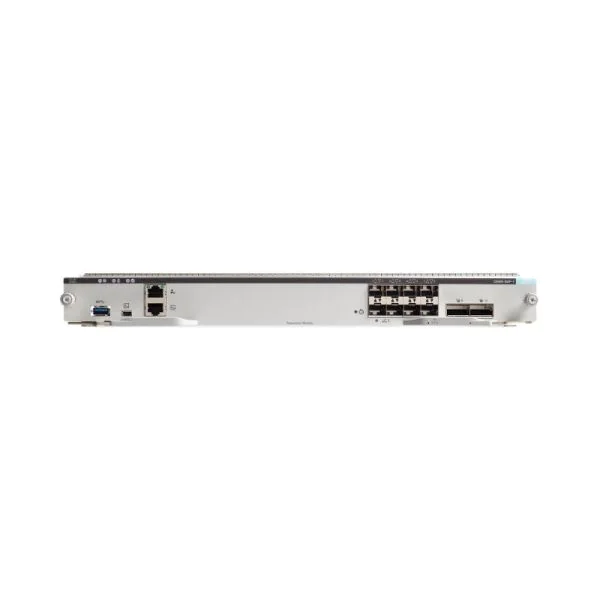

Cisco Catalyst C9400X-SUP-2XL |
| Series |
Catalyst 9400 Series |
| Role |
Supervisor Module |
| Switch Fabric Capacity |
9 Tbps |
| Forwarding Capacity |
4.8 Tbps |
| Maximum Number of VLANs |
4096 |
| Management Ports |
Out-of-Band 10/100/1000 Mbps Ethernet Port |
| Console Ports |
RS-232 |
| Redundancy |
Supports redundant supervisor modules |
| Memory |
16 GB DRAM |
| Flash Memory |
32 GB |
| Operating Temperature Range |
32°F to 104°F (0°C to 40°C) |
| Storage Temperature Range |
-40°F to 158°F (-40°C to 70°C) |
| Relative Humidity |
5% to 95% (non-condensing) |
| Dimensions (W × D × H) |
1.72 × 16.60 × 16.00 inches |
| Power Consumption |
250W max |
| MTBF |
509,600 hours |
| RoHS Compliant |
Yes |
| Layer Support |
Layer 2 and Layer 3 |
| Software Compatibility |
Cisco IOS XE |
