| Category | Specification |
|---|---|

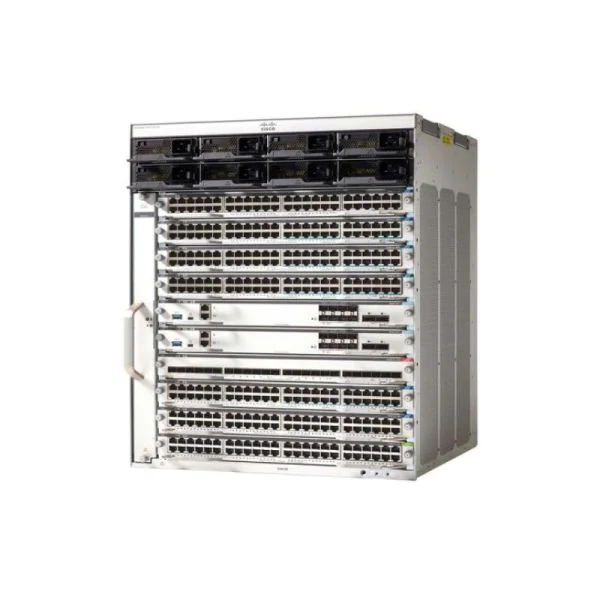

| Model | C9410R |
| Brand | Cisco |
| Total Number of Slots | 10 |
| Line-Card Slots | 8 |
| Supervisor Engine Slots | 2 |
| Dedicated Supervisor Engine Slot Numbers | 5 and 6 |
| Supervisor Engine Redundancy | Yes |
| Supervisor Engines Supported | C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y |
| Maximum PoE per Slot | 2880W |
| Maximum Bandwidth per Line-Card Slot | Up to 480 Gbps on all slots |
| Number of Power Supply Bays | 8 |
| AC Input Power | Yes |
| Integrated PoE | Yes |
| Power Supplies Supported | 3200W AC, 2100W AC |
| Number of Fan-Tray Bays | 1 |
| Location of 19-inch Rack-Mount | Front |
| Dimensions (H × W × D) | 22.61 × 17.30 × 16.30 in (57.43 × 43.97 × 31.70 cm) |
| Rack Units (RU) | 13 RU |
| Mounting | 19-inch rack compatible (hardware included) |
| Regulatory Compliance | CE Marking |
| Safety | nUL 60950-1, CAN/CSA-C222.2 No. 60950-1, EN 60950-1, IEC 60950-1, nAS/NZS 60950.1, IEEE 802.3 n |
| EMC | n47 CFR Part 15, CISPR22 Class A, KN 32 Class A, EN 300 386 V1.6.1, nEN 55022 Class A, EN 55032 Class A, CISPR 32 Class A, EN61000-3-2, nEN61000-3-3, ICES-003 Class A, TCVN 7189 Class A, V-3 Class A, nCNS13438 Class A, CISPR24, EN 300 386, EN55024, TCVN 7317, KN35 n |
| Industry EMC, Safety & Environmental Standards | nNEBS Level 3 nOperating Temp: -5 to 55°C nHumidity: 10–93% nAltitude: up to 1829 m at 55°C nETSI 300-019 (Storage, Transport, Stationary) nEN50121-4, EN 300 386 n |
| ROHS Compliance | ROHS5 |
