| Specification | Details |
|---|---|

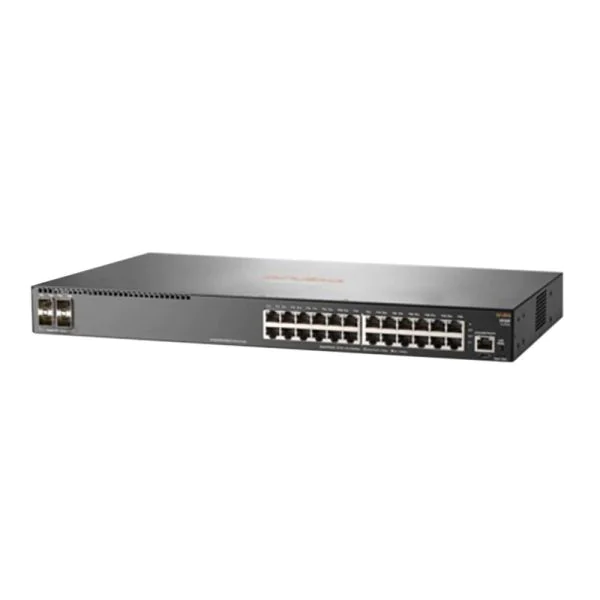

| Model | HPE Aruba 2930F 24G PoE+ 370W Switch |
| Brand | Aruba |
| Ports | 24 × 10/100/1000BASE-T PoE+ (IEEE 802.3at, up to 30W per port) 4 × 1G SFP |
| Switching Capacity | 56 Gbps |
| Throughput | 41.7 Mpps |
| Latency | <3.8 μs (1G), <1.6 μs (10G) |
| CPU | Dual-core ARM Cortex-A9 @ 1.016 GHz |
| Memory | 1 GB DDR3, 4 GB eMMC |
| PoE Budget | 370W (IEEE 802.3at) |
| Power Input | 100–240V AC |
| Maximum Power Consumption | 445W |
| Heat Dissipation | 258 BTU/hr |
| Management | Aruba AirWave, CLI, Web GUI, SNMP, RMON, USB console |
| Dimensions | 4.39 × 44.25 × 30.42 cm (1U) |
| Weight | 5.31 lbs (2.41 kg) |
