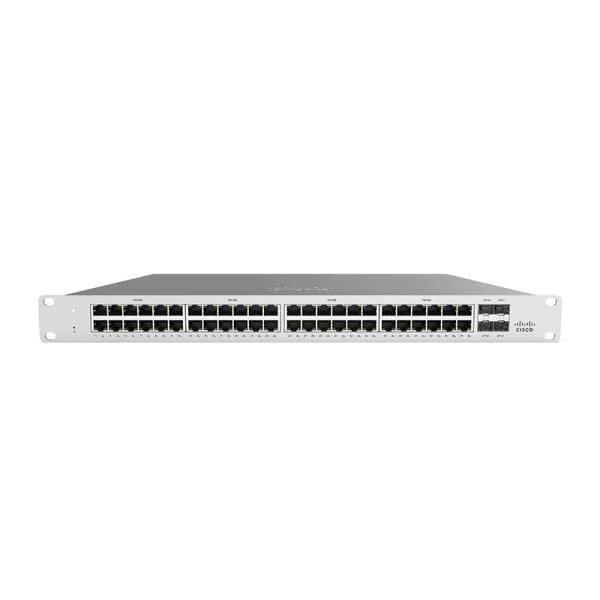

| MS120-48LP-HW Specifications | |
|---|---|
| Interfaces | • 48 × 10/100/1000BASE-T RJ45 (auto-negotiation, auto-MDIX) • 4 × 1GbE SFP uplinks • RJ45 Management port |
| Switching Capacity | 104 Gbps |
| Forwarding Rate | 41.67 mpps |
| Idle / Full Load Power | 37 W / 477 W |
| Power Supply Configuration | Fixed internal |
| What’s Included | 1 × Rack mounting screw kit |
| Dimensions (H × W × D) | 1.73 × 17.32 × 13.4 in (4.4 × 44 × 34 cm) |
| Weight | 12.70 lb (5.70 kg) |
| Management | • Meraki cloud-managed • Integrated with Meraki Wireless & IT portfolio • Zero-touch provisioning • Virtual Stacking • Historical usage statistics • DHCP, client & hostname fingerprinting • SNMPd & SYSLOG support • Automatic firmware upgrades (scheduled) |
| Layer 3 | DHCP Relay |
| Remote Diagnostics | • Email/SMS/mobile alerts • Cable testing & link failure detection • Live remote packet capture • Network discovery & topology • Event/config change logs with search |
| Power | • Input: 100–240 VAC, 47–63 Hz • Consumption: 8–908 W |
| Mounting | • 1U Rack-mountable • 2-post front mounting options • Desktop-mountable with included feet |
| Ethernet Switching Capabilities | • 802.1p QoS (8 queues, DSCP-to-CoS mapping) • 802.1Q VLANs (up to 4,094) • 802.1w / 802.1D RSTP, STP • Broadcast storm control • LLDP & CDP • 802.3ad Link aggregation (up to 8 ports) • Multichassis aggregate support • Port mirroring • IGMP snooping • MAC table: 16K entries |
| Environment | • Operating temp: 0°C to 45°C • Humidity: 5–95% non-condensing • Fanless operation (from MS120 family) |
| Regulatory | • CSA-US • FCC • IC • CE • RCM • RoHS |
| Security | • Two-factor authentication • Role-based access control (RBAC) • Password policy enforcement • 802.1X RADIUS & MAB • Multi-Domain/Host Authentication • Port security (Sticky MAC, whitelisting) • DHCP snooping & DAI • STP protections (BPDU, Root, Loop guard) • IPv4 & IPv6 ACLs |
| MTBF | 707,873 hours |
