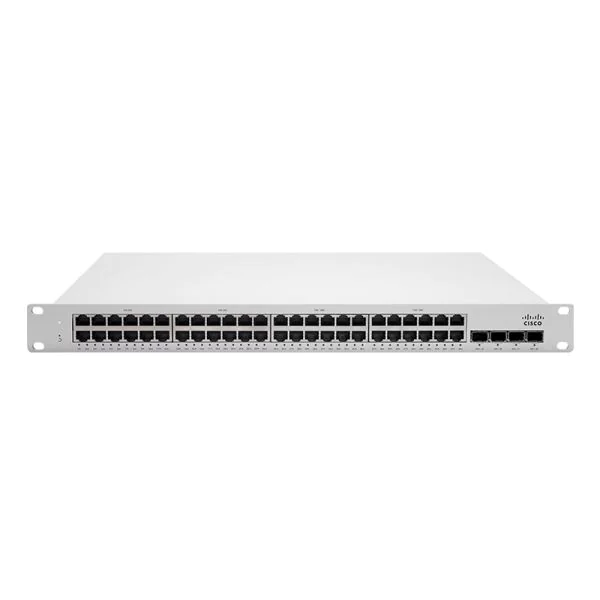

| Cisco MS225-48FP-HW Specification | |
|---|---|
| Interfaces | • 48 x 10/100/1000BASE-T Ethernet RJ45 (auto-MDIX) • 4 x SFP+ 10GbE uplink • 2 x stacking ports • RJ45 management port |
| Switching Capacity | 176 Gbps |
| Stacking Bandwidth | 80 Gbps (dual interface) |
| Forwarding Rate | 127.98 Mpps |
| Available PoE+ Power | 740 W |
| Idle / Full Load Power | 54 W / 882 W |
| Power Supply Configuration | Fixed internal |
| Optional Redundant Power Supply | External RPS |
| What’s Included | 1 x Mounting screw kit |
| Dimensions | 1.72 x 19 x 13.38 in (4.38 x 48.46 x 34 cm) |
| Weight | 9.63 lb (4.37 kg) |
| Management | • Managed via Meraki cloud platform • Integrated with Meraki wireless + IT solutions • Zero-touch provisioning • Historical per-port/client statistics • DHCP, client, hostname fingerprinting • SNMPd & SYSLOG support • Automatic firmware upgrades (scheduled) |
| Layer 3 Features | • Static routing • DHCP Relay |
| Remote Diagnostics | • Email, SMS & push alerts • Cable testing & link failure detection • Live remote packet capture • Dynamic topology maps • Event & configuration change logs |
| Power | • Input: 100–240 VAC, 47–63 Hz • Consumption: 15–882 W • RPS: Requires RPS-2300 chassis |
| Stacking | • Physical stacking: up to 8 switches (80 Gbps) • Virtual stacking: thousands of ports • Compatible with MS210 |
| Mounting | • 1U rack-mountable (hardware included) • 2-post front mount option • Desktop-mountable (feet included) |
| Ethernet Switching Capabilities | • 802.1p QoS, 8 queues (6 configurable) • 802.1Q VLANs (up to 4,094) • 802.1w / 802.1D RSTP / STP • Broadcast storm control • LLDP & CDP • 802.3ad link aggregation (8 ports, multichassis supported) • Port mirroring • IGMP snooping • MAC table: 32K entries |
| Environment | • Operating temperature: -5°C to 50°C • Humidity: 5–95% non-condensing • Fanless operation |
| Regulatory | • CSA-US • FCC • IC • CE • RCM • RoHS |
| Security | • Two-factor authentication • Role-based access control (RBAC) • Password policy enforcement • IEEE 802.1X, MAB, hybrid authentication • Multi-domain/host authentication • Port security (Sticky MAC, whitelisting) • DHCP snooping, DAI • STP enhancements: BPDU guard, Root guard, Loop guard • IPv4 & IPv6 ACLs |
| MTBF Rating | 381,015 hours |
