| Brand |
Cisco |
| Model |

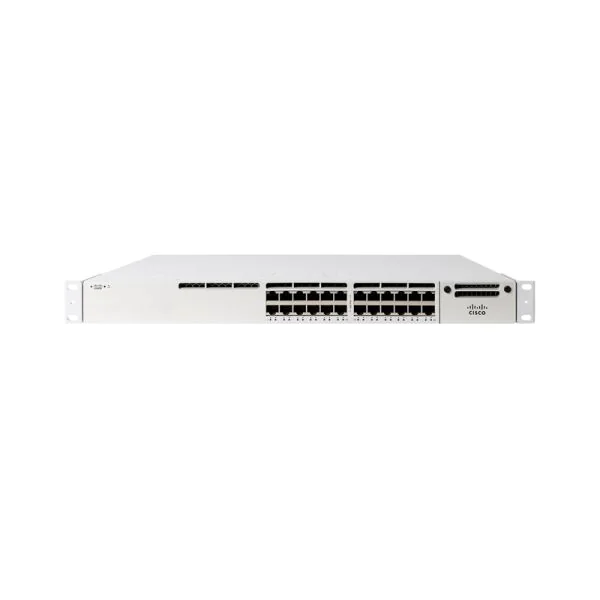

MS390-24UX-HW |
| Total Ports |
24 |
| Port Type |
mGig |
| Layer Type |
Layer 3 |
| UPOE Support |
Yes |
| Switching Capacity |
320 Gbps |
| Forwarding Rate |
238.09 Mpps |
| Power Supply |
AC |
| Management |
Cloud Managed via Meraki Dashboard |
| Stacking |
Supported, up to 8 units |
| Jumbo Frame Support |
Yes, up to 9,216 bytes |
| Security Features |
802.1X, RADIUS, ACLs |
| QoS |
8 hardware queues per port |
| MTBF |
262,960 hours |
| VoIP Support |
Yes |
| Operating Temperature |
0°C to 45°C |
| Dimensions (W × D × H) |
17.4 × 16.3 × 1.7 inches |
| Warranty |
Limited Lifetime |
