| MS390-48UX2-HW Specification | |
|---|---|

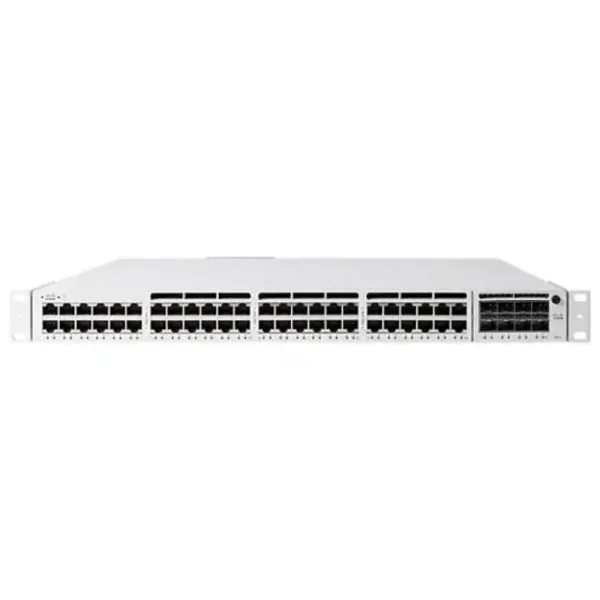

| Product Name | Meraki MS390 48m5G L3 UPOE Switch |
| Brand | Cisco |
| Model | MS390-48UX2-HW |
| Port Count | 48 |
| Port Type | mGig (multigigabit) |
| Uplink Ports | 2 x 40G/10G QSFP+ |
| Layer Support | Layer 3 |
| PoE Standard | UPOE (Universal Power over Ethernet) |
| Total Power Budget | 1440W |
| Management | Cloud Managed |
| Stacking Capabilities | Yes |
| Switching Capacity | 648 Gbps |
| MAC Address Table Size | 32,000 entries |
| Jumbo Frame Support | Yes |
| VLAN Support | Yes |
| Security Features | Access Control Lists, 802.1X Authentication |
| QoS Features | Traffic Shaping, Bandwidth Management |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| MTBF | 370,090 hours |
| Dimensions | 44.5 x 38 x 4.45 cm (17.5 x 15 x 1.75 inches) |
| Warranty | Limited Lifetime |
| Power Supply | Dual, Hot-swappable |
