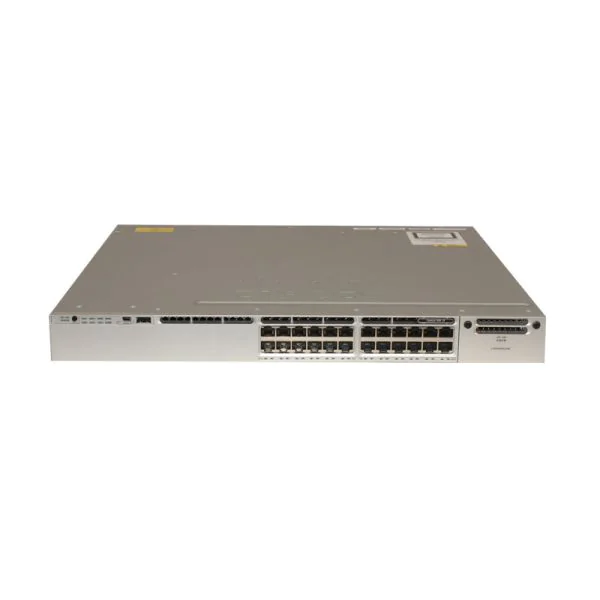

| Cisco WS-C3850-24T-S Specifications | |
|---|---|
| Basic Information | |
| Model | WS-C3850-24T-S |
| Enclosure Type | Rack-mountable, 1U |
| Ports | 24 × 10/100/1000 |
| Network Management Interfaces | • Ethernet management port (RJ-45) • Console port (RJ-45-to-DB9) |
| Available PoE Power | None |
| Performance | |
| Switching Capacity | 92 Gbps |
| Maximum Stacking Number | Up to 9 switches |
| Stack Bandwidth | 480 Gbps |
| Forwarding Performance | 68.4 Mpps |
| FNF Entries | 24,000 flows |
| Maximum VLAN IDs | 4,000 |
| MAC Address Table Size | 32K |
| CPU | Multicore CPU |
| RAM | 4 GB |
| Flash Memory | 2 GB |
| Wireless Capabilities | |
| AP per Switch/Stack | 100 |
| Wireless Clients per Switch/Stack | 2000 |
| Total WLANs per Switch | 64 |
| Wireless Bandwidth | Up to 20 Gbps |
| Supported AP Series | 3600, 3500, 2600, 1600, 1260, 1140, 1040 |
| Expansion & Connectivity | |
| Console Ports | USB Type-B, RJ-45 |
| Expansion Slots | 1 × Network Module, 1 × Redundant Power Slot |
| Network Module Options | • C3850-NM-4-1G (4 × 1G) • C3850-NM-2-10G (2 × 10G or 4 × 1G) |
| Stacking Cables | • STACK-T1-50CM (0.5 m) • STACK-T1-1M (1.0 m) • STACK-T1-3M (3.0 m) |
| Stack Power Cables | • CAB-SPWR-30CM • CAB-SPWR-150CM |
| Power | |
| Power Supply | PWR-C1-350WAC |
| Power Device | Redundant plug-in module |
| Power Redundancy | Optional |
| Voltage Range | 100–240V Auto |
| Max Power Consumption | 84.97 W |
| Physical Information | |
| Width | 17.5 in (44.5 cm) |
| Depth | 17.7 in (44.5 cm) |
| Height | 1.75 in (4.45 cm) |
| Weight | 15.9 lbs (7.2 kg) |
| Rack Mount Kit | Optional |
| MTBF | 303,230 hours |
| Compliant Standards | |
| IEEE 802.1D, 802.1p, 802.1Q, 802.1s, 802.1w, 802.1X, 802.11, 802.1ab (LLDP), 802.3ad, 802.3x, 802.3 (10BASE-T), 802.3u (100BASE-TX), 802.3ab (1000BASE-T), 802.3z (1000BASE-X), RMON I & II, SNMP v1/v2c/v3 |
|
| Software & Licensing | |
| System Software | IOS IP Base (Upgradable) |
| EnergyWise License | ENERGY-MGMT, ENERGY-MGT-100-K9 |
| Software Licenses | • C3850-24-S-E (paper) • L-C3850-24-S-E (electronic) |
| Access Point Licenses | • L-LIC-CT3850-UPG • L-LIC-CTIOS-1A • LIC-CT3850-UPG • LIC-CTIOS-1A |
| Features | |
| RPS Support, Jumbo Frames, VLANs, Voice VLAN, VTPv2, CDPv2, LLDP, LACP, PAgP, PVST/PVST+, RSTP/MSTP, DTP, QoS, ACLs, Port Security, DHCP Snooping, DAI, RPF, IGMPv1-v3, MLDv1-v2, HSRP, VRRP, BGP, RIP, EIGRP, OSPF, IS-IS, VRF-Lite, PIM-SM/DM, SSM, Flexible NetFlow, and more. |
|
| Advanced Network Security | |
| Port Security, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, RPF, Private VLANs, 802.1ae, TrustSec SXP, BPDU Guard, Root Guard, TACACS+, RADIUS, SSH, SNMPv3, Wireless end-to-end security, and more. |
|
| Environmental Ranges | |
| Operating temperature: -5°C to 45°C (varies by altitude) Short-term: up to 55°C depending on altitude Storage: -40°C to 70°C Operating altitude: up to 13,000 ft Storage altitude: up to 15,000 ft Humidity: 10%–95% non-condensing |
|
