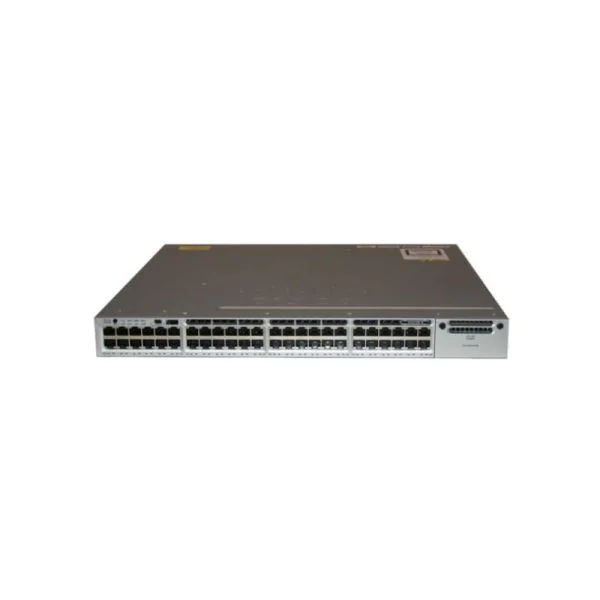

| Cisco WS-C3850-48T-S Specification | |
|---|---|
| Model | WS-C3850-48T-S |
| Enclosure Type | Rack-mountable – 1U |
| Ports | 48 × 10/100/1000 |
| Network Management Interface | • Ethernet management port (RJ-45, Cat-5) • Management console port (RJ-45-to-DB9) |
| Available PoE Power | None |
| Switching Capacity | 176 Gbps |
| Maximum Stacking Number | Up to 9 switches |
| Stack Bandwidth | 480 Gbps |
| Forwarding Performance | 130.95 Mpps |
| FNF Entries | 48,000 flows |
| Maximum VLAN IDs | 1,000 |
| MAC Address Table Size | 32K |
| CPU | Multicore CPU |
| RAM | 4 GB |
| Flash Memory | 2 GB |
| Wireless Capabilities | |
| APs per Switch/Stack | 100 |
| Wireless Clients per Stack | 2000 |
| Total WLANs | 64 |
| Wireless Bandwidth | Up to 40 Gbps |
| Supported Aironet AP Series | 3600, 3500, 2600, 1600, 1260, 1140, 1040 |
| Expansion & Connectivity | |
| Console Ports | USB Type-B, RJ-45 |
| Expansion Slots | 1 network module slot, 1 redundant power slot |
| Network Modules | • C3850-NM-4-1G (4 × 1G) • C3850-NM-4-10G (4 × 10G) • C3850-NM-2-10G (2 × 10G or 4 × 1G) |
| StackWise Stacking Cables | 0.5 m, 1.0 m, 3.0 m |
| Stack Power Cables | 30 cm, 150 cm |
| Power | |
| Power Supply | PWR-C1-350WAC |
| Redundancy | Optional |
| Voltage Range | 100–240V |
| Power Consumption | 127.24W (max) |
| Physical | |
| Width | 17.5 in (44.5 cm) |
| Depth | 17.7 in (44.5 cm) |
| Height | 1.75 in (4.45 cm) |
| Weight | 17.0 lb (7.7 kg) |
| Rack Mount Kit | Optional |
| MTBF | 303,660 hours |
